Line Cars & Bicycles
Manual Line Cars

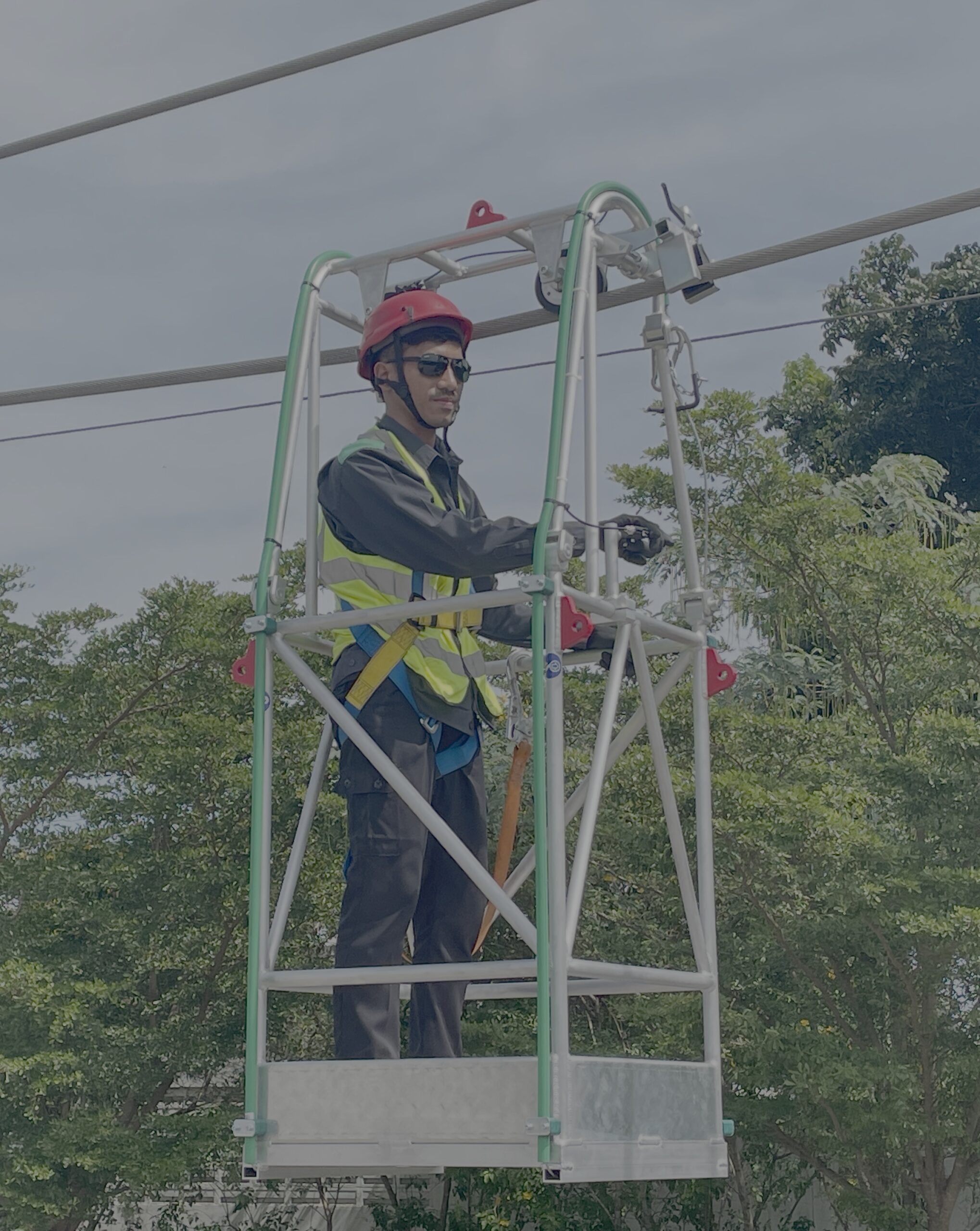

Line Car
One operator / Single conductor
The Line Car is like the Line Seat used for traveling over single conductors or earth wires for installation of aircraft warning balls, vibration dampers, etc. The operator is positioned in a trolley. This model is equipped with stationary brake plus dynamic disk brake. A meter counter is included in the standard equipment.
Please note: When riding over single conductors/earth wires a safety line with sufficient breaking load needs to be installed.
| Part No. | Description | Safe Working Load (kg) | Dimensions LxWxH<br/ >(mm) |
Weight kg |
| LCP-01-01 | Single conductor / Earthwires | 150 | 645x725x1956 | 43 |

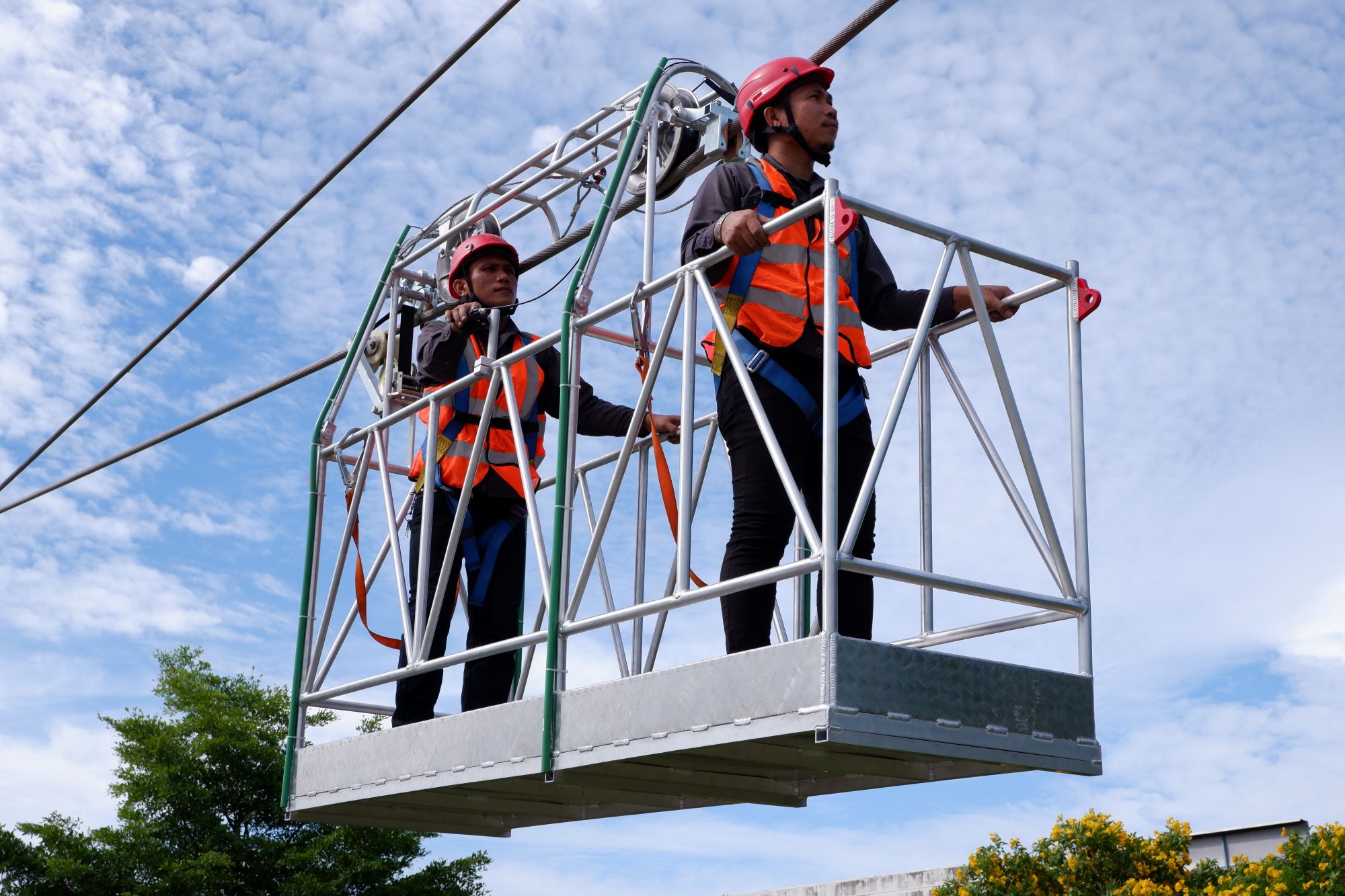

Line Car
Two operators / Single conductor
Line car for 2 people, suitable to work on single conductor or earth wire. Welded from stable and high-strength aluminum. It is equipped with parking brake as well as dynamic disk brake with two parking brakes and large nylon wheels with a diameter of 440 mm. A meter counter is included in the standard equipment.
| Part No. | Description | Safe Working Load (kg) | Dimensions LxWxH<br/ >(mm) |
Weight kg |
| LCP-02-01 | Single conductor / Earthwires | 200 | 2500x750x2186 | 100 |

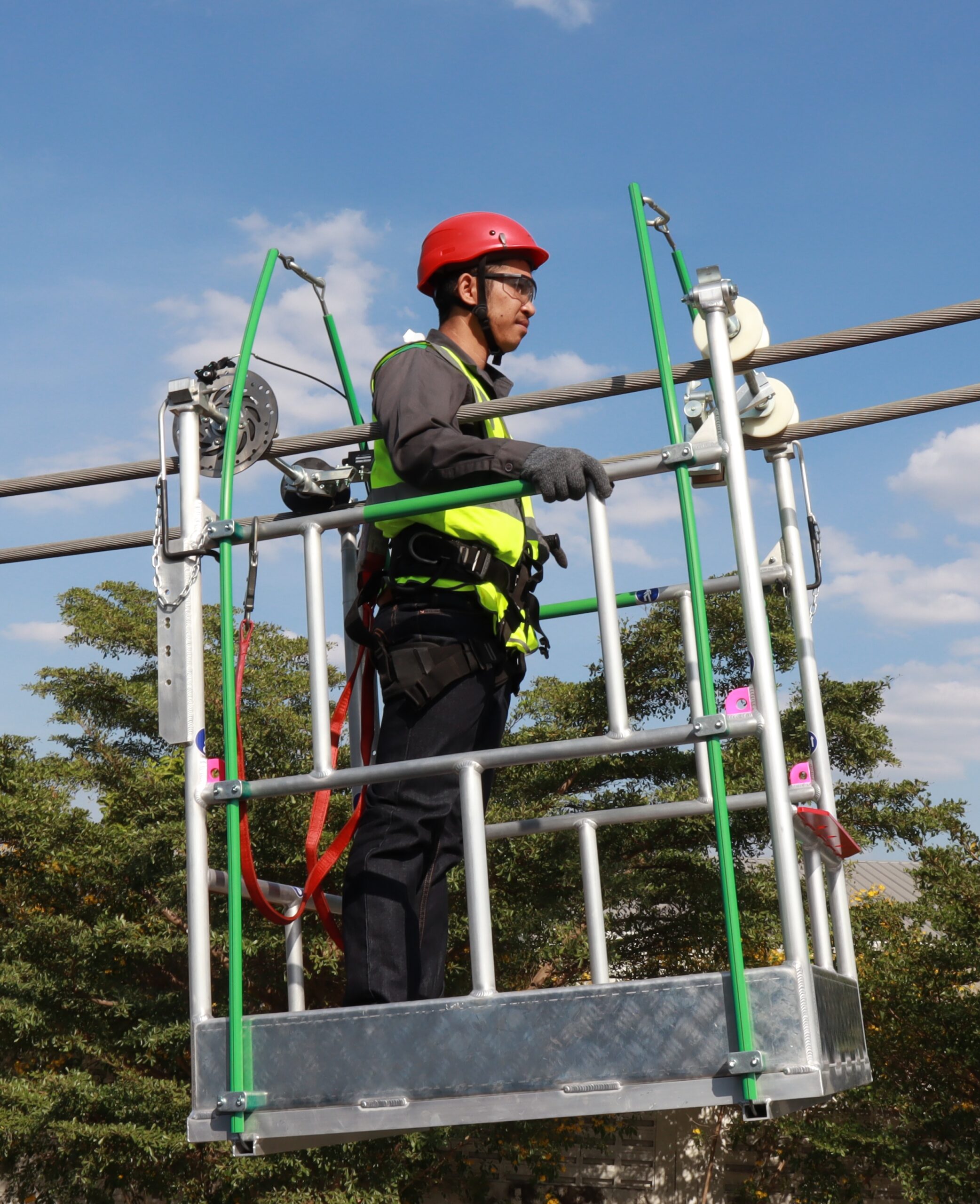

Line Car
One operator / 2-4 conductors
The LCP-01-xxx line cars are designed for single-operator use. They are equipped with a parking brake and a dynamic disk brake. A meter counter is included as standard equipment.
| Part No. | Description | Safe Working Load (kg) | Spacing between conductors (mm) | Dimensions LxWxH (mm) |
Weight kg |
| LCP-01-02 | 2-bundles | 150 | 400-510 | 1178x820x1410 | 62 |
| LCP-01-03 | 3-bundles | 150 | 400-510 | 1178x820x1410 | 65 |
| LCP-01-04 | 4-bundles | 150 | 400-510 | 1178x820x1410 | 66 |

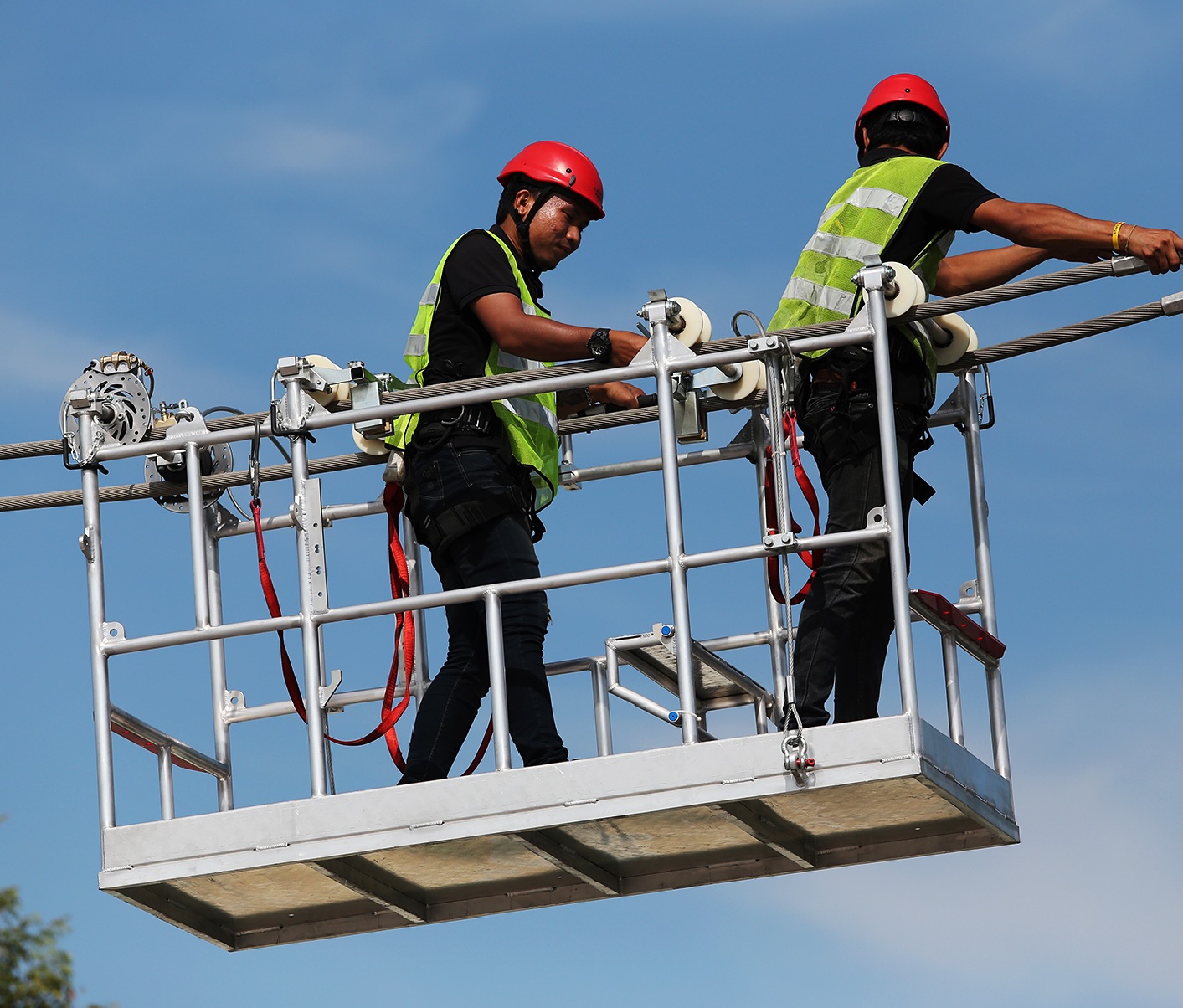

Line Car
2 operators / 2-4 conductors / Tower surpassing ability
Our models LCP-02 are designed for a safe working load of 250 KG. The four axles can be opened in sequence. This enables the Line Car to pass over suspension towers instead of lowering it down and lifting it up again at every tower.
The Line Car LCP-02 is welded of superior aluminium alloy and equipped with meter counter and parking brake. Within the scope of supply is also a dynamic brake system by two hydraulic activated disk brakes.
Upon ordering the distance between the conductors need to be specified.
| Part No. | Description | Safe Working Load (kg) | Spacing between conductors (mm) | Dimensions LxWxH (mm) |
Weight kg |
| LCP-02-02 | 2-bundles | 250 | 400-510 | 2078x820x1270 | 90 |
| LCP-02-03 | 3-bundles | 250 | 400-510 | 2078x820x1270 | 96 |
| LCP-01-04 | 4-bundles | 250 | 400-510 | 2078x820x1270 | 100 |

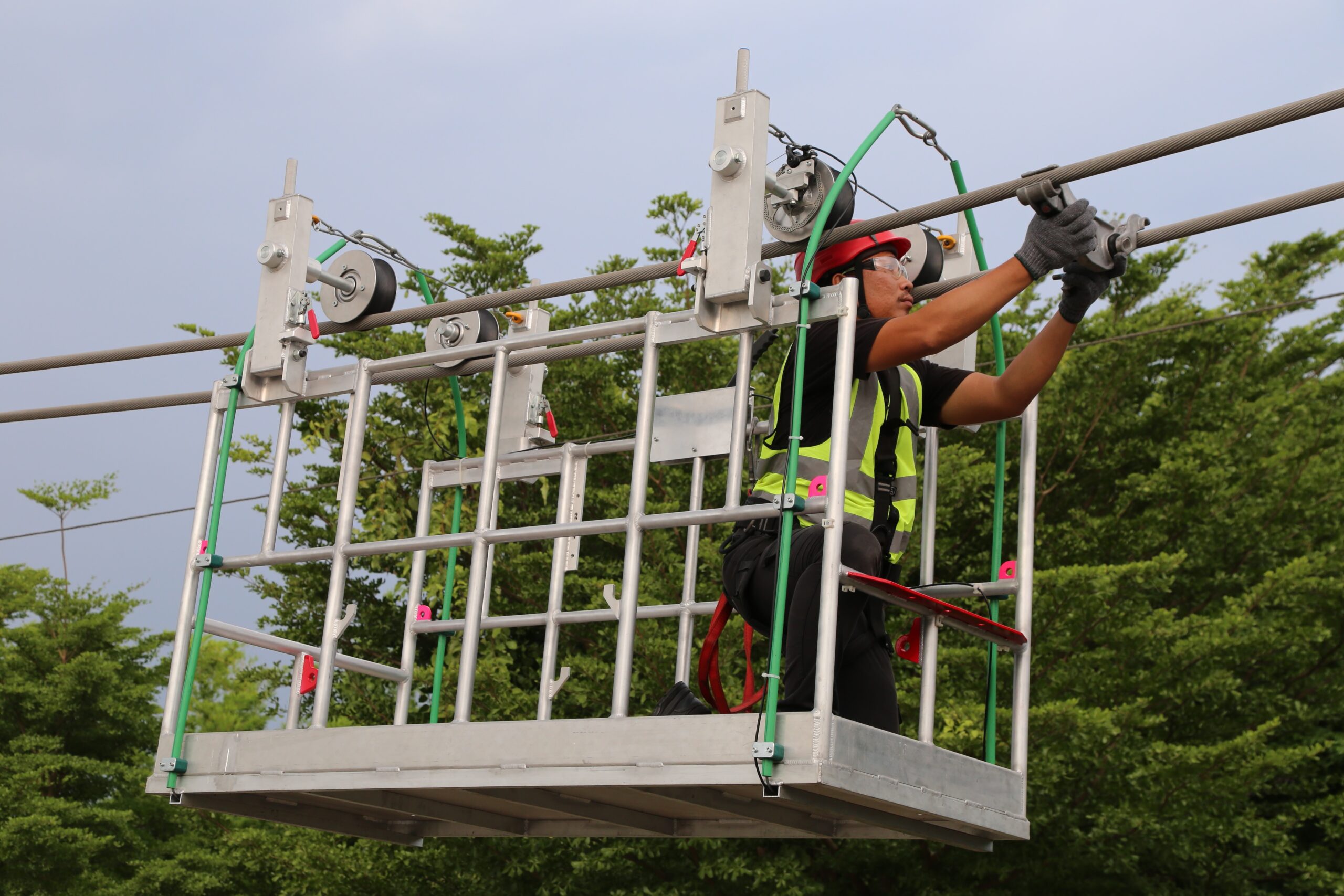

Line Car
“New Generation”- 1 operator / 2-4 conductors / Tower surpassing ability
Our “New Generation” Line Cars are equipped with four wheels, mounted with independent suspension systems instead of rigid axles. The Line Cars are easier to mount on the conductors and capable to surpass suspension towers with a T-bar. Thanks to the innovative mechanism with only four wheels, they surpass suspension towers in less time.
Standard Features
- Rubber wheels
- Lightweight aluminum frame
- Four lifting points
- Distance Counter
| Part No. | Description | Safe Working Load (kg) | Spacing between conductors (mm) | Dimensions LxWxH (mm) |
Weight kg |
| LCP-03-02 | 2-bundles | 150 | 400, 450, 500, 520 | 1900x820x1570 | 123 |
| LCP-03-03 | 3-bundles | 150 | 400, 450, 500, 520 | 1900x820x1570 | 129 |
| LCP-03-04 | 4-bundles | 150 | 400, 450, 500, 520 | 1900x820x1570 | 134 |
Optional Equipment
| Part No. | Description | Safe Working Load (kg) | Weight kg |

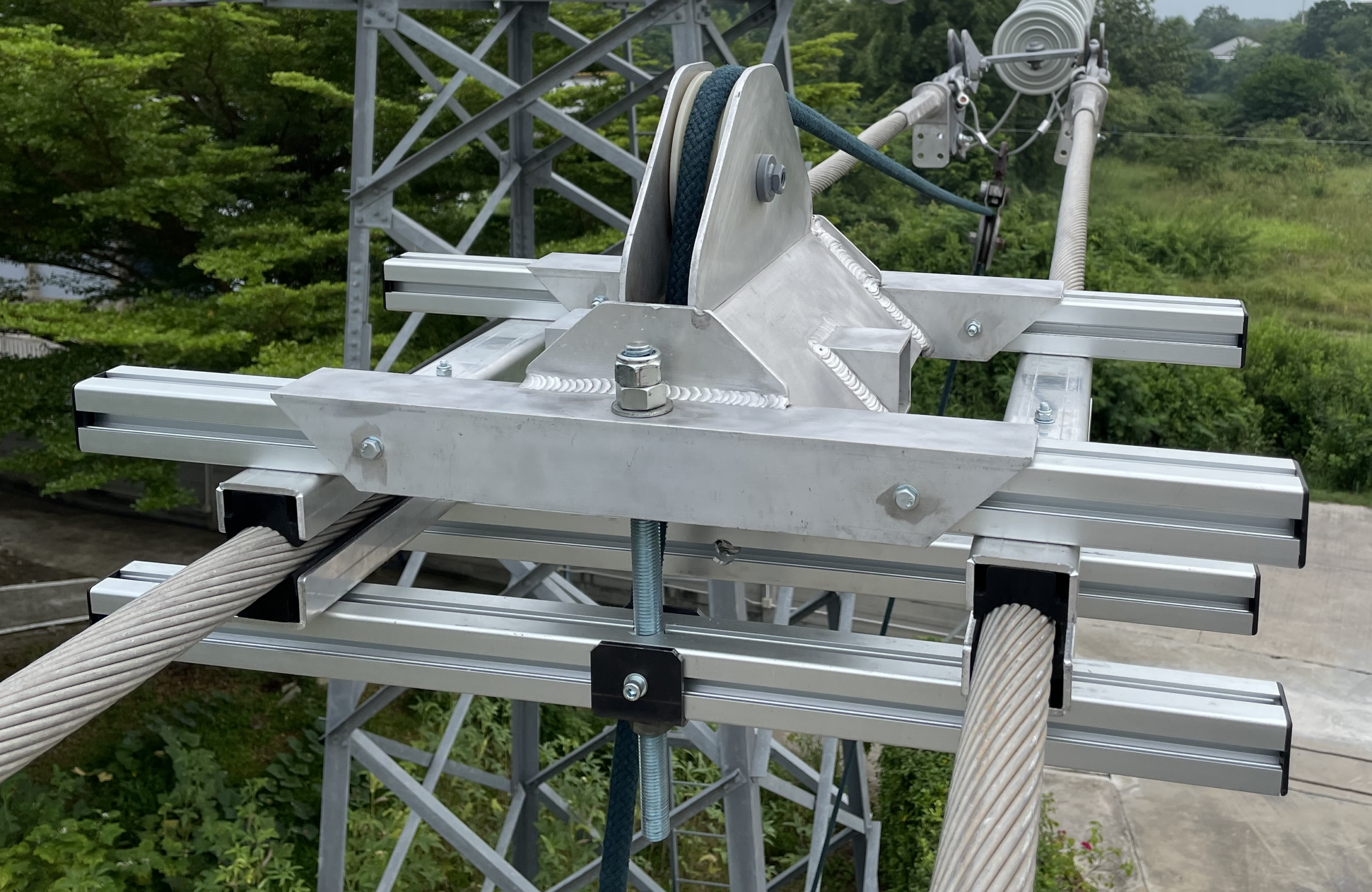

| LCP-00-02 | Lifting Device | 500 kg | 9 kg |
| LCP-00-04 | Catch net for fall prevention | - | - |

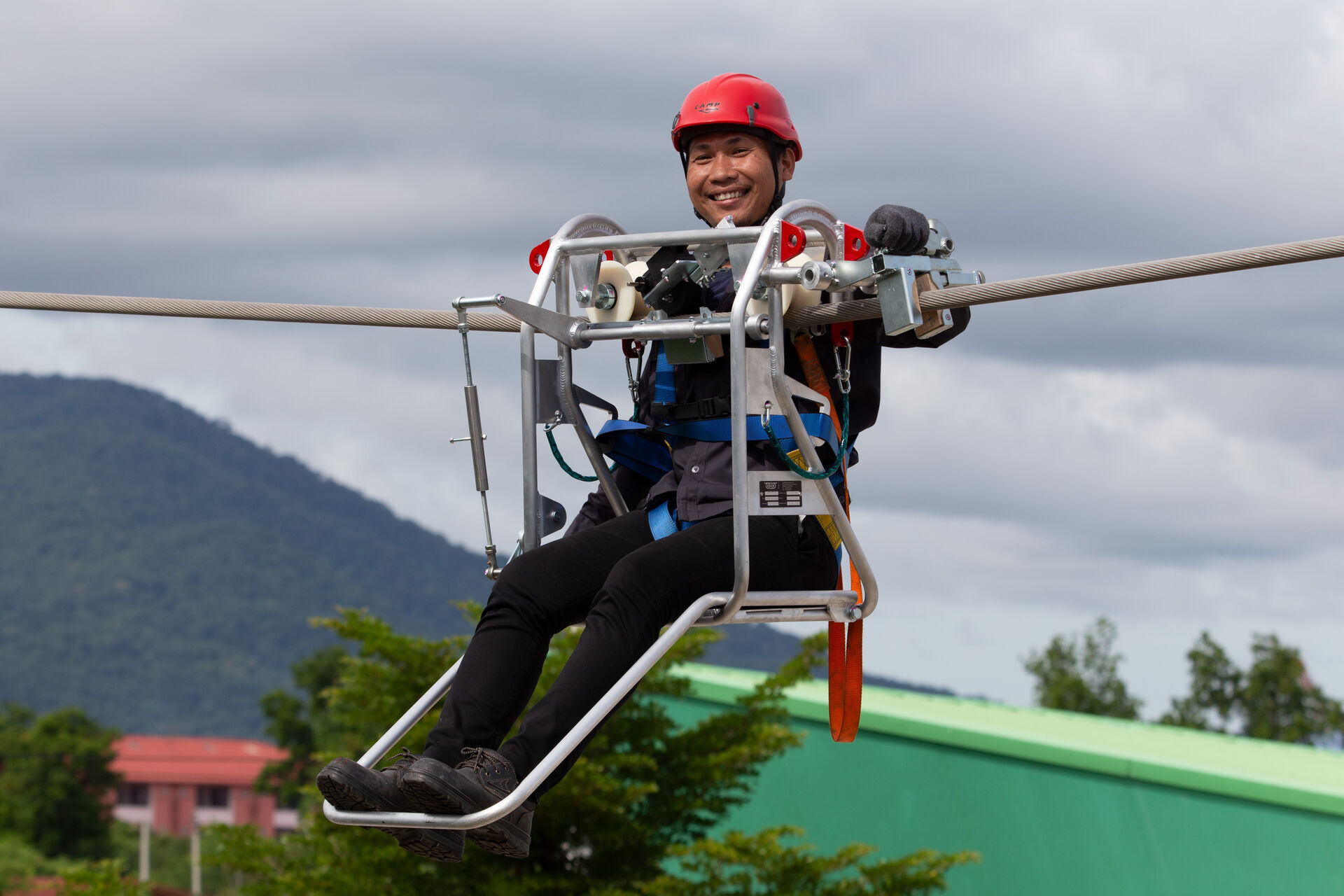

Line Seat
(for single conductor/earth wire)
The Line Seat can be easily moved over single conductor or earth wires, for instance for installation of aircraft warning balls, vibration dampers. It is equipped with two combined stationery and dynamic brakes.
Please note: When riding over single conductors/ earth wires a safety line with sufficient breaking load needs to be installed.
| Part No. | Description | Safe Working Load (kg) | Dimensions LxWxH (mm) |
Weight kg |
| LSE-01-01 | Line Seat for single conductor / earthwire | 100 | 960x795x1120 | 19 |
