Stringing Blocks & Conductor Guidance
Hold-Down Blocks
The hold-down block is designed to keep ropes securely aligned on the ground during the tension stringing
process. Constructed with a steel frame and high-strength nylatron sheaves, these blocks ensure stability
and precision, preventing ropes from shifting or tangling.

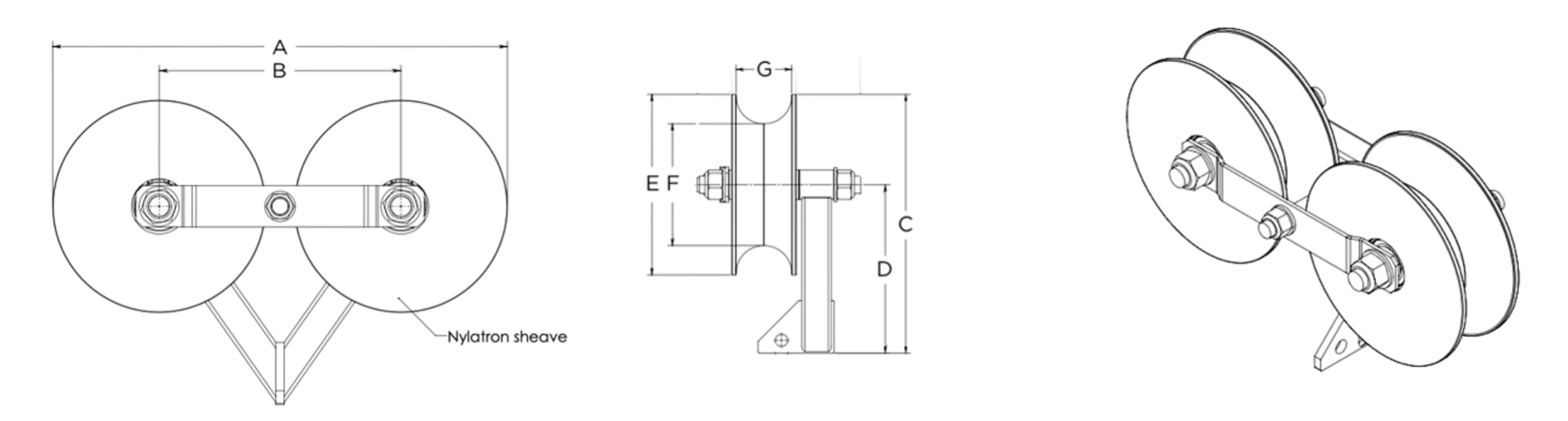

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| HDB-01-0095 | 658 | 350 | 441 | 287 | 308 | 208 | 95 | 141 | 47 | 21 |
