Synthetic Pulling Ropes in High-Voltage Line Construction

Key Application Areas

  • Pilot ropes for conductor stringing
  • Lightweight mid-pull and final-pull solutions
  • Auxiliary ropes for tower erection, guying, and crane support
  • Safer handling around energized environments (non-conductive)

Operational Advantages

  • High breaking strength with extremely low weight
  • Reduced conductor damage due to lower abrasion
  • Corrosion-free, minimal maintenance
  • Safer handling: no wire breaks, no snap-back risk
  • One-person operation possible, improved ergonomics

    Future-Relevant Technologies

    • Drones/UAVs: Pilot rope installation across short–mid spans, waypoint automation
    • Line Robotics: Adequate for inspection robots and live-line robot systems
    • Hybrid Rope Technology: Fiber-steel composites for high-load pulling
    • Smart Ropes: Integrated tension, temperature, and abrasion monitoring
    • Sustainability: Reusable, spliceable, recyclable materials
    • Advanced Heli Operations: Improved long-line efficiency with ultra-light ropes

    Value for Grid Operators

    • Faster project completion
    • Higher site safety
    • Reduced OPEX through reusability and lower maintenance
    • Future-proof for automated and digital construction workflows

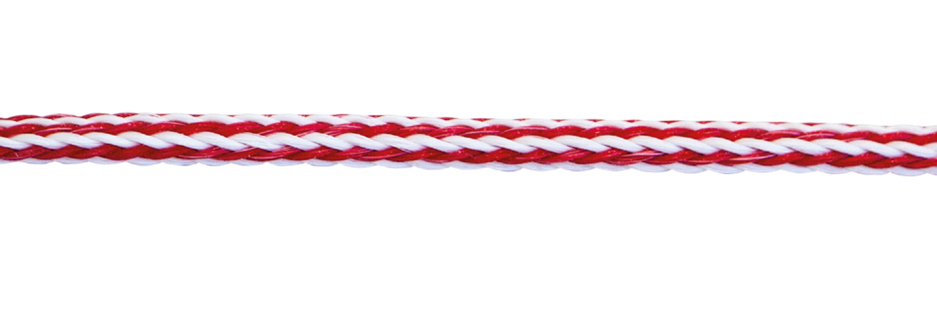

    PP BRAIDED HOLLOW ROPE

    • Absorption resistant fibers
    • Low strength
    • High elongation (approx. 6.4 % at 20 % of breaking load)
    • Good abrasion resistance
    • Very easy to splice (like pulling grip)
    • Cost effective

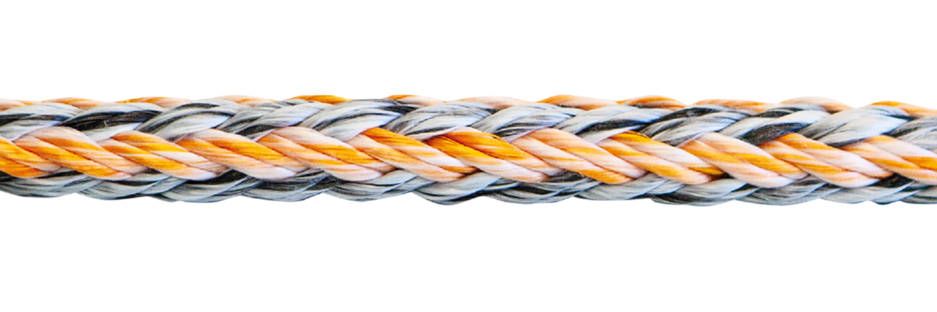

    PP/PES BRAIDED HOLLOW ROPE

    • Easy handling as especially light pulling rope
    • Good strength
    • Standard elongation (approx. 3.2 % at 20 % of breaking load)
    • Very good abrasion resistance
    • Very easy to splice (like pulling grip)
    • Cost effective

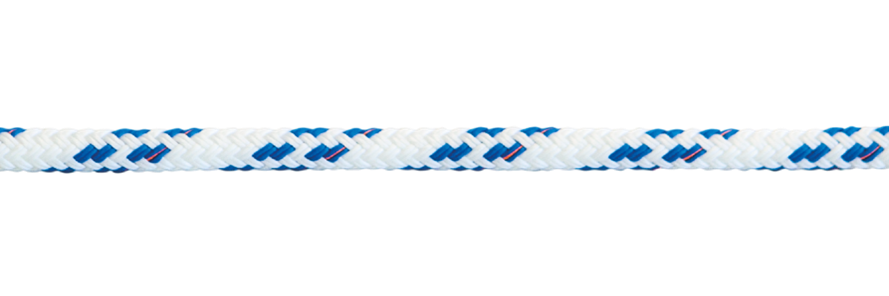

    PES DOUBLE BRAID ROPE

    • Very robust pulling rope
    • Good strength
    • Low elongation (approx. 3.6 % at 20 % of breaking load)
    • Very good abrasion resistance
    • Spliceable

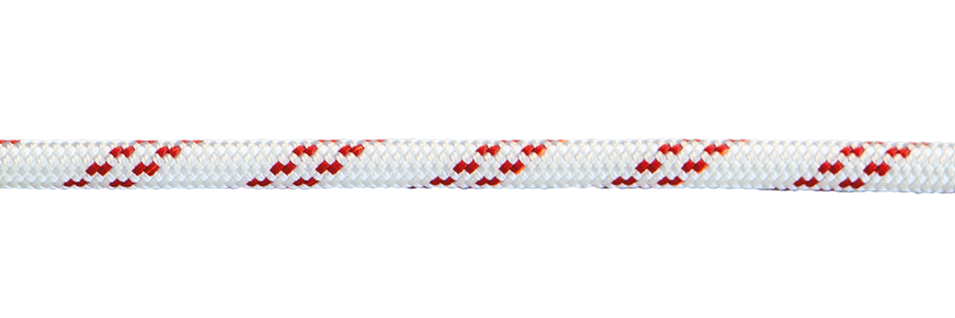

    BRAIDED ROPE WITH HF (HF CORE | PES COVER)

    • High-strength pulling rope, suitable for drum winches
    • Very good strength
    • Lowest elongation (approx. 1.2 % at 20 % of breaking load)
    • Very good abrasion resistance
    • Spliceable

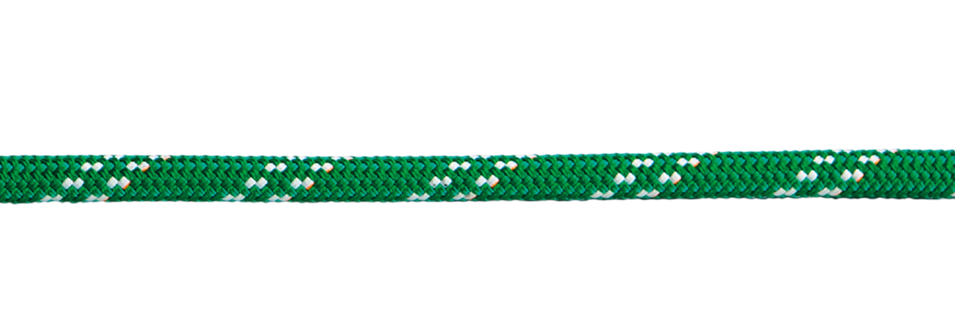

    BRAIDED ROPE WITH HF+ (HF CORE | PES COVER)

    • High-strength pulling rope, suitable for drum winches
    • Highest strength
    • Lowest elongation (approx. 0.5 % at 20 % of breaking load)
    • Very good abrasion resistance
    • Spliceable

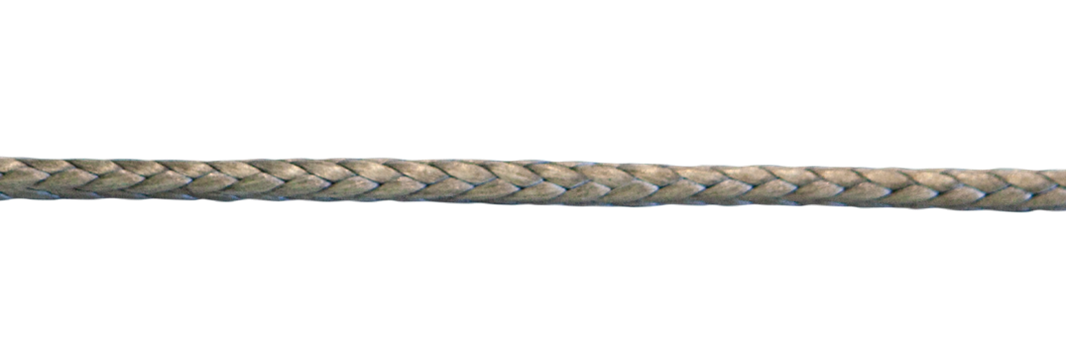

    BRAIDED HOLLOW ROPE WITH HF

    • High breaking load at small rope diameter
    • Highest strength
    • Lowest elongation (approx. 1.0 % at 20 % of breaking load)
    • Satisfying abrasion resistance
    • Very easy to splice (like pulling grip)

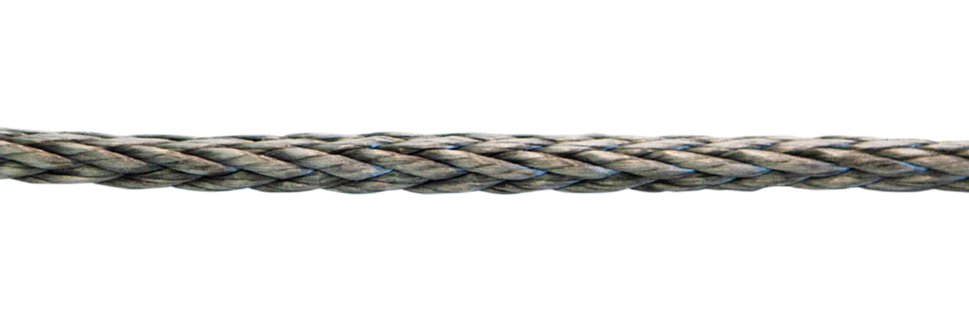

    BRAIDED HOLLOW ROPE WITH HF+

    • Particularly suitable for higher breaking loads at small rope diameters
    • Highest strength
    • Lowest elongation (approx. 0.5 % at 20 % of breaking load)
    • Satisfying abrasion resistance
    • Very easy to splice (like pulling grip)

    HIGH TENSILE FIBERS MADE OF DYNEEMA® OR NOVOLEEN®

    Abbreviations: PES = polyester | PP = polypropylene | HF = high-tensile fibre | HF+ = extremely high-tensile fibre

    SYNTHETIC FIBER ROPE

    • Synthetic fiber rope, delivered in cardboard box

    Optional

    • Delivered on disposable reel or steel reel with Ø of 1100, 1400 or 1800 mm
    • Spliced eyes (breaking load and working load are reduced by approx. 10%)
    • Tarpaulin for steel reel

    Special designs on request

    Rope Ø (mm) 6 8 10 12 13 14 16 18 20 22 24
    PP Braided hollow rope
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		– – 5110
    2.7
    12.1
    1.7    		 5112
    4.4
    16.5
    2.4    		 – 5114
    5.8
    23.1
    3.3    		 5116
    7.3
    29.7
    4.2    		 5118
    10.6
    39.6
    5.7    		 5120
    14.2
    47.3
    6.8    		 5122
    15.5
    57.2
    8.2    		 5124
    18.5
    67.1
    9.5
    PP/PES Braided hollow rope
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		– – – 5312
    5.5
    29.7
    4.2    		 – 5314
    7.5
    36.3
    5.2    		 5316
    9.8
    47.3
    6.8    		 5318
    12.4
    66.0
    9.4    		 5320
    18.5
    83.6
    11.9    		 – 5324
    27.5
    115.5
    16.5
    PP/PES Double braid rope
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		5206
    2.6
    10.0
    1.4    		 5208
    4.0
    16.5
    2.4    		 5210
    6.8
    26.4
    3.8    		 5212
    9.3
    39.6
    5.7    		 – 5214
    13.0
    45.5
    6.5    		 5216
    18.0
    61.1
    8.7    		 5218
    23.4
    91.3
    13.0    		 5220
    30.0
    110.0
    15.7    		 5222
    37.3
    134.2
    19.2    		 5224
    43.4
    159.5
    22.8
    Braided rope with HF
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		5006
    2.6
    18.3
    2.6    		 5008
    4.0
    33.3
    4.7    		 5010
    6.8
    54.4
    7.8    		 5012
    9.9
    82.5
    11.9    		 – 5014
    13.3
    105.5
    15.1    		 5016
    17.5
    133.3
    19.0    		 5018
    22.3
    166.6
    23.8    		 5020
    28.0
    211.1
    30.2    		 5022
    33.0
    254.0
    36.3    		 5024
    39.0
    280.5
    40.1
    Braided rope with HF+
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		– 6108
    4.6
    47.0
    6.7    		 6110
    7.3
    81.8
    11.7    		 6112
    9.8
    110.0
    15.7    		 – 6114
    13.8
    130.0
    18.6    		 6116
    17.0
    152.0
    21.7    		 6118
    22.5
    188.0
    26.9    		 6120
    28.0
    206.0
    29.4    		 6122
    31.0
    243.0
    34.7    		 6124
    37.0
    280.0
    40.0
    Braided rope with HF+
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		– – 6210
    8.4
    94.4
    13.5    		 6212
    9.3
    137.0
    19.6    		 6213
    11.9
    160.0
    22.9    		 6214
    14.0
    177.7
    24.4    		 6216
    15.0
    223.3
    31.9    		 6218
    19.5
    265.5
    37.9    		 – 6222
    31.5
    346.8
    49.5    		 6224
    41.0
    535.6
    76.5
    Braided hollow rope with HF
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		5406
    1.9
    35.4
    5.1    		 5408
    3.3
    62.1
    8.9    		 5410
    4.8
    88.6
    12.7    		 5412
    7.2
    132.8
    19.0    		 – 5414
    10.0
    186.1
    26.6    		 5416
    11.5
    212.8
    30.4    		 5418
    15.3
    270.0
    38.6    		 5420
    20.1
    342.8
    49.0    		 5422
    23.4
    400.0
    57.1    		 5424
    28.4
    485.6
    69.4
    Braided hollow rope with HF+
    Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)
    		5506
    2.0
    42.2
    6.0    		 5508
    4.1
    83.7
    12.0    		 5510
    5.4
    111.7
    16.0    		 5512
    9.5
    195.5
    28.0    		 – 5514
    10.9
    223.5
    31.9    		 5516
    14.5
    283.8
    40.5    		 5518
    22.2
    420.1
    60.0    		 5520
    27.0
    510.2
    72.9    		 5522
    29.5
    555.5
    79.4    		 5524
    36.3
    670.1
    95.7

    Abbreviations: PES = polyester | PP = polypropylene | HF = high-tensile fibre | HF+ = extremely high-tensile fibre | Working load: Calculated according to European standards (safety factor 7) | - Model not available
