Line Seat-Car (for single conductor-earth wire)

Line Seat-Car (for single conductor-earth wire)

Line Seat (for single conductor/earth wire)

The Line Seat can be easily moved over single conductor or earth wires, for instance for installation of aircraft warning balls, vibration dampers. It is equipped with two combined stationary and dynamic brakes. Optionally a meter counter is available.



Please note: when riding over single conductors/ earthwires a safety line with sufficient breaking load needs to be installed.

part no. ZECK GmbH
part no.
description SWL
Kg
dimension
LxWxH (mm)
weight
Kg
LSE-01-01 77-6125 Line Seat for single conductor/earthwire 100 948x432x727 19



Optional Equipment:

part no. ZECK GmbH part no. description weight Kg
LCP-00-01 77-6129 meter counter 1.25











Line Car (for single conductor/earth wire)

The Line Car is like the Line Seat used for traveling over single conductors or earthwires for installation of aircraft warning balls, vibration dampers, etc. The operator is positioned in a trolley. This model is equipped with stationary brake plus dynamic disk brake. Optionally available is a meter counter.


Please note: when riding over single conductors/earthwires a safety line with sufficient breaking load needs to be installed.





part no. ZECK GmbH
part no.
description SWL
Kg
dimension
(mm)
weight
Kg
LCP-01-01  77-6124 single conductor/earthwires 150 645x725x1956 43



Optional Equipment:

part no. ZECK GmbH part no. description weight Kg
LCP-00-01 77-6129 meter counter 1.25

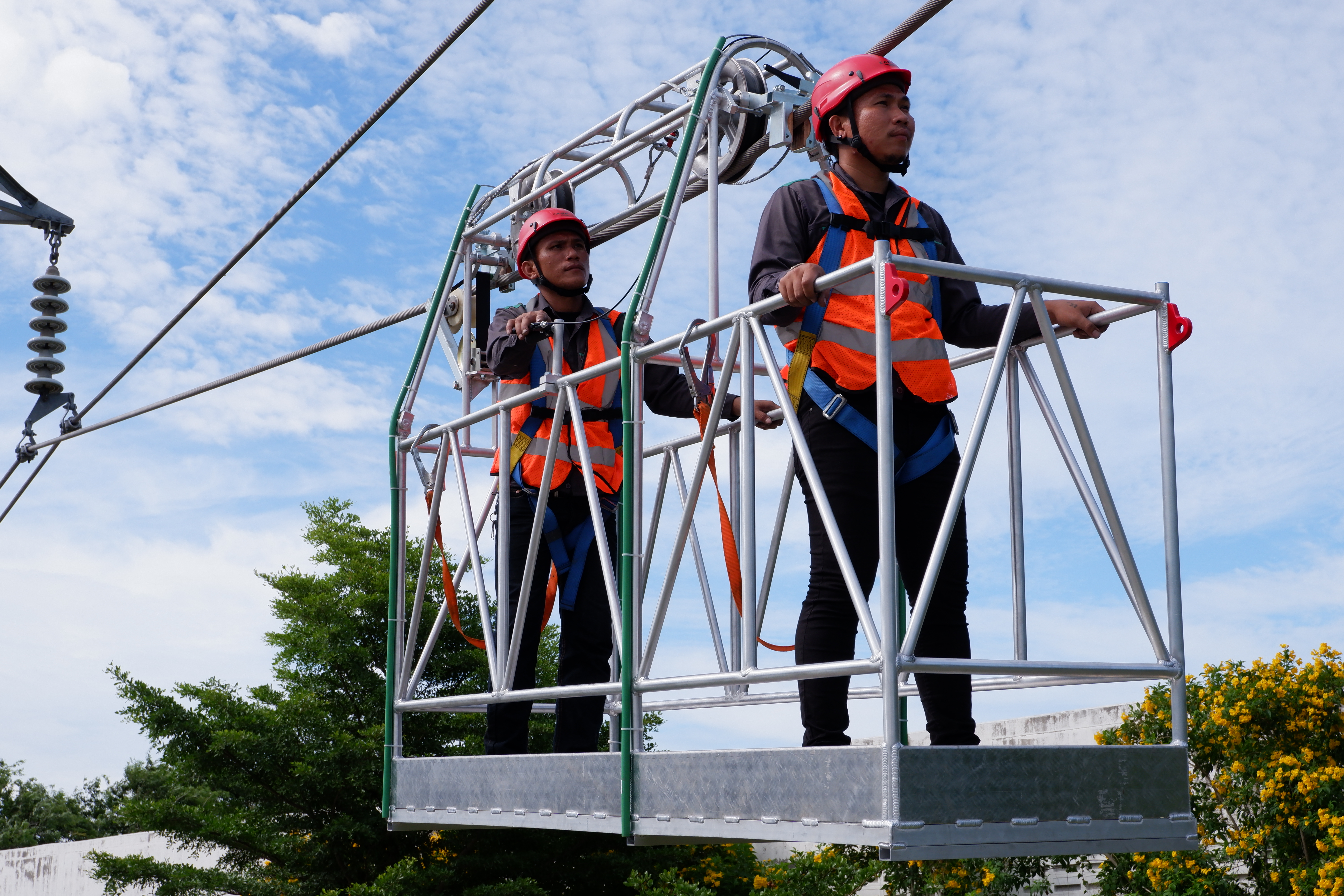

Line Car (Inspection Trolley for single conductor for 2 linemen)

Line car for 2 people, suitable to work on single conductor or earthwire. Welded from stable and high-strength aluminium. They are equipped with parking brake as well as dynamic disk brake with two parking brakes and large nylon wheels with a diameter of 440 mm. The balancing wheels hold the line car in position and the user can work on the platform.



part no. ZECK GmbH
part no.
description SWL
Kg
dimension
LxWxH (mm)
weight
Kg
LCP-02-01 77-6123 single conductor/earthwire 200 2500x750x2186 100

Optional Equipment:

part no. ZECK GmbH part no. description weight Kg
LCP-00-01 77-6129 meter counter 1.25
