Puller 50 kN

This machine is a compact, light and very powerful hydraulic double capstan winch for pulling of a single rope with up to 50kN force. For heavy duty tower erection, cable pulling and other applications it is ideally suited. It comes with an integrated rope storage drum, hydraulic reelwinder and rope level wind. The capacity of the drum is 350m of for instance 16mm rope. For longer pulls a seperate reelwinder can be attached to an optional available hydraulic power take-off.





VERSIONS

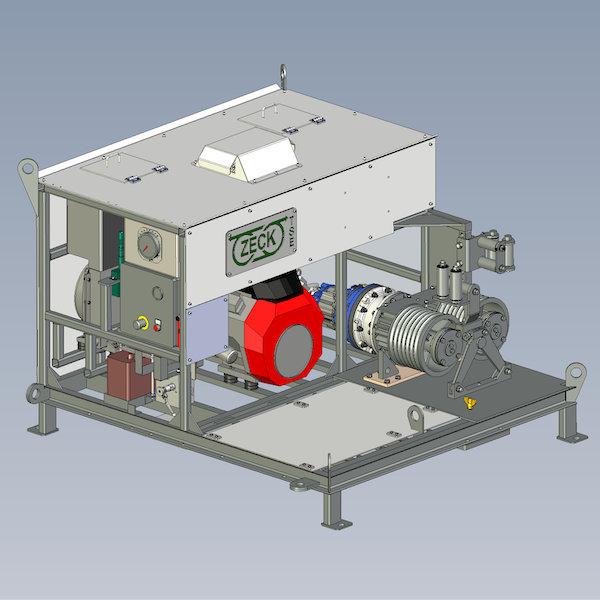

• PUL-01-05: Standard version on steel frame and lockable aluminum cover with gas spring

   suspended flaps

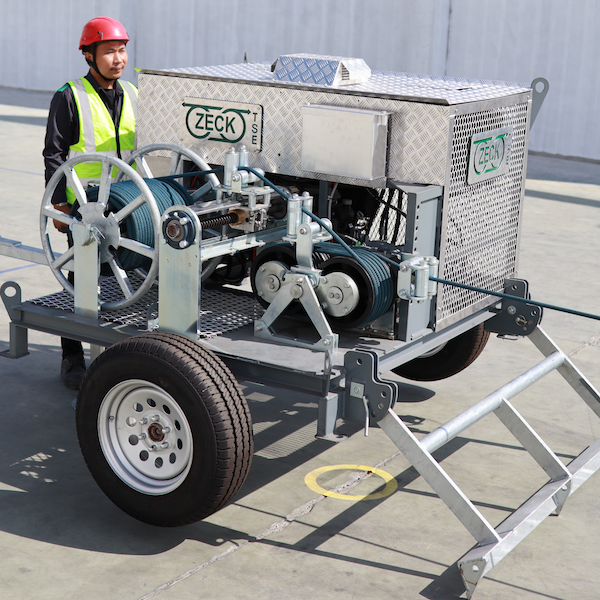

• PUL-00-01: 1-Axle chassis with rigid axle for up to 30 km/h

   (construction site operation, without official approval for road service)

• PUL-00-02: Hydraulic crawler chassis

• PUL-05-02: basic version without rope storage drum, hydraulic reelwinder and level wind









PULLER PERFORMANCE


max. pulling force:  50 kN
max. speed:  26m/min
speed at max pulling force:  10m/min
min.speed at continuous pulling force: 2m/min



BULL WHEELS


number of bull wheels: 2
diameter of bull wheels:  255 mm
groove diameter: 22 mm



DIMENSION/WEIGHT


length x width x height:  1600x1650x1165 mm
weight:

900 kg







ENGINE

DRIVE SYSTEM
  • max. 16.5kW (22.1 hp)
  • hydraulic Drive System
  • Honda GX690 with electro start
  • bull wheel with completely closed drive unit (motor+brake+gear box) for minimal maintenance and high efficiency

  • automatically activated safety brake system




CONTROL SYSTEM

GENERAL FEATURES
  • control of rope in/out via hand lever
  • steel frame with anchoring eyes
  • control instrument for the pulling force
