Steel Reels

Steel Reels

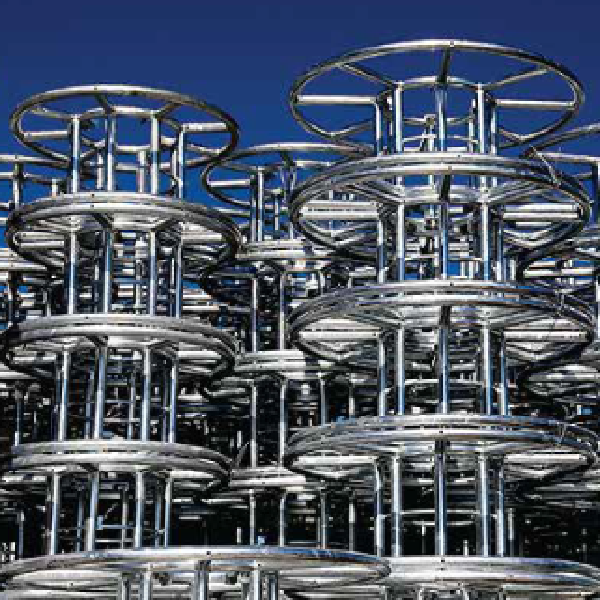

Our steel reels are welded of steel tubes and finished with a high quality painting. Optionally we supply them hot-dip zinc coated. For Zeck Pullers we optional supply them with welded or lasered crossplates. These reels are available in sizes of 520 up to 1,800 mm diameter. Detachable reels are supplied for re-conductoring works, when the wound up conductor needs to be scrapped. For extra long lengths of wire rope we supply galvanized steel drums with a capacity up to 13,000 KG.



For special lengths of wire rope we supply steel drums of any customized size and strength.

















non detachable

hot-dip galvanized finishing

part no. ZECK GmbH
part no.
dimensions in mm weight
Kg

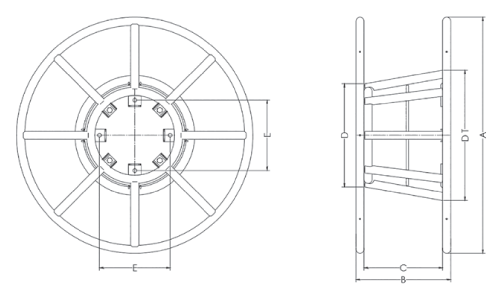

A Bฺ C D E F
TSR-01-0520 77-9030 520 420 334.6 264 160 50 29
TSR-01-1100 77-9034 1100 560 460 570 420 50 73
TSR-01-1400 77-9035 1400 560 460 570 420 50 83
TSR-01-1450 77-9038 1450 560 460 570 420 50 85
TSR-01-1800 77-9037 1800 560 460 570 420 50 105



non detachable

painted finishing

part no.
ZECK GmbH
part no.
dimensions in mm weight
Kg
A B C D DT E F
TSR-02-0520 77-9030-L 520 420 334.6 264 - 160 50 29
TSR-02-1100 77-9034-L 1100 560 460 570 - 420 50 71
TSR-02-1400 77-9035-L 1400 560 460 570 - 420 50 81
TSR-02-1450 77-9038-L 1450 560 460 570 - 420 50 83
TSR-02-1800 77-9037-L 1800 560 460 570 - 420 50 105









detachable

hot-dip galvanized finishing

part no.
ZECK GmbH
part no.
dimensions in mm weight
Kg
A B C D DT E F
TSR-03-1100 77-9052 1100 560 460 570 680 420 50 79
TSR-03-1400 77-9054 1400 560 460 570 715 420 50 93



detachable

painted finishing

part no.
ZECK GmbH
part no.
dimensions in mm weight
Kg
A B C D DT E F
TSR-04-1100 - 1100 560 460 570 680 420 50 76
TSR-04-1400 - 1400 560 460 570 715 420 50 90











Optional Equipment:

part no. description thickness
mm
weight
Kg
TSR-00-01  one pair of bolted crossplate, punched, galvanized plate for fitting the reel winder shaft of Zeck Pullers 6 5.20
