Line Bicycles

Line Bicycles

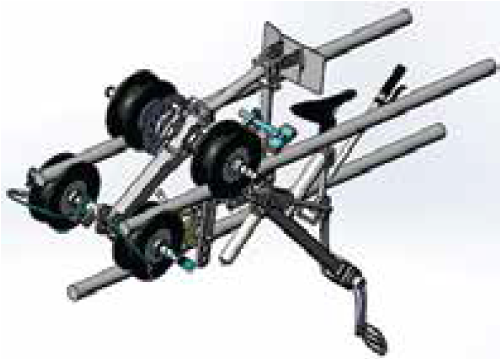

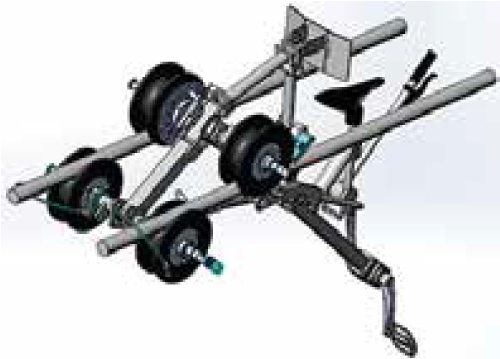

Line Bicycles allow linesman to safely travel along transmissionline conductors and earthwires. The advantage towards Line Cars is that they are muscle powered. Without any motorization the operator can conveniently pedal along the line for inspection, installation of spacers, vibration dampers or aircraft warning spheres. Models for single conductor, twin, triple, quad-bundled conductors are available



Characteristics:

• high-tensile ball-bearing mounted neoprene sheaves with fall protection

• static braking device with jaws locking on conductors, controlled by lever

• dynamic disc braking device at the drive shaft, controlled by lever

• adjustment to conductor spacing between 400 and 510 mm

• comfortable sitting position

• fall protection

• meter counter device

  part no.   ZECK GmbH
part no.
description SWL
Kg
dimensions
LxWxH (mm)
weight
Kg





77-6150 for single
conductor / earthwire
100 1050x554x1655 25
  LBP-01-01






77-6152 for 2-bundle conductors 100 650x770x1560 32
  LBP-01-02







77-6154

for 3-bundle conductors
100 706x643x1560 38
  LBP-01-03






77-6156 for 4-bundle conductors 100 850x770x1903 42
  LBP-01-04
