Drum Stand for overhead stringing

Drum Stand for overhead stringing

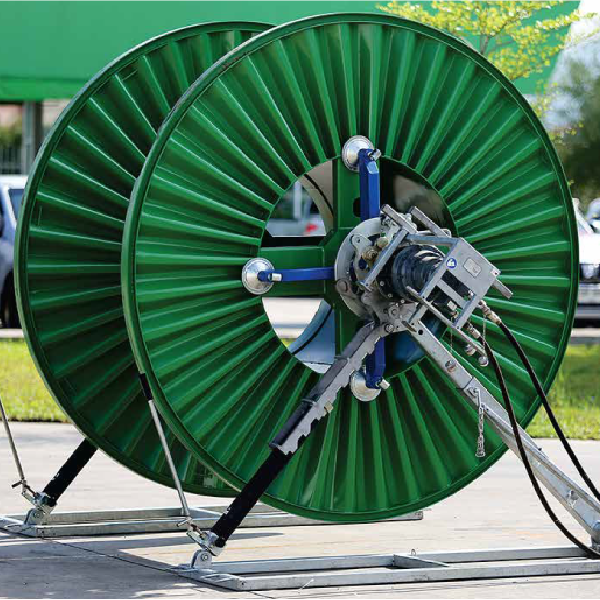

Thanks to it´s easy transportability and capacity to install conductor drums without use of a crane this design is the most popular among transmissionline contractors worldwide. With the drumshaft being inserted conductor drums can be rolled into the drumstand and then lifted with two manually operated hydraulic jacks. Once in operating position the drumshaft will be rested on a mechanical holding device, so that the hydraulic jacks are freed from any constant load. The drumstand DST is equipped with two disk brakes for stationery purpose. For most efficient operation we highly recommend the use of hydraulic drum-drive motors.

                    part no. ZECK GmbH
part no.
model min. drum
dia. mm
max. drum
dia. mm
max. drum
weight Kg
max. drum
width mm
DST-01-070 V244-200 TB IT 7 1600 2800 7000 1500
DST-01-100 V244-300 TB IT 10 2000 3200 10000 2040


center shaft bore: min. 95mm, max. 115mm



Optional Equipment

part no. ZECK GmbH
part no.
description dimensions
LxWxH (mm)
weight
Kg
DST-00-001 V244-982 hydraulic hose set 15 m for TB/IT 7 - 26.70
DST-00-002 V244-211 hydraulic drum drive: max. drive 2900 Nm - 97
DST-00-003 V244-220 transport box - TB IT 7 2250x920x750 65
  V244-320 transport box - TB IT 10 2500x960x880 75
DST-00-004 V244-311 adapter for steel drum - 4.5*


special designs on request
* weight per peice
